GAVR 8A automatic voltage regulator avr model for generator
Item Code: GAVR 8A
Material: Reliable Material
MOQ: 10pcs
INQUIRY NOW
Product Details
Description

                                                                        GAVR-8A

Input

Sensing Voltage

220/400VAC,1phase 2wire

Power Voltage

180~240VAC, 1phase 2wire

Voltage Jumper selectable

95-132V ac or 190-264 Hz nominal

Frequency

50-60 Hz nominal

Output

Voltage max

90V dc at 207V ac input

Current continuous

2A dc

Current intermittent

5A for 10 secs

Resistance

20 ohms minimum

Voltage Build-up

esidualvolts at AVR teminal>5VAC

External volts adjustment

+/-7%with 1KΩ 1watt trimmer

Unit Power Dissipation

Max.8Watt

Under Frequency Protection

60Hz system presets knee point at 57Hz

Factory Settings

50Hz system presets knee point at 47Hz

Body size

15.7*11.5*6cm

Application

Biogas Power Generation

Natural Gas Power

Field Engineering

Electric Power

Factory

Fire-fighting


Payment Term
1.We accept T/T,West Union,Money Gram, Cash.
2.All major Credit cards are accepted through secure payment processor ESCROW.
3:Begin to Ready the goods after receiving the 30% down payment, the balance payment before shipment.
Shipment Term
1. We Ship to Worldwide, except APO/FPO.
2: We cooperate with the lots air line, can send the goods by air with competitive freight.
3: For the urgently or small order, can send by express.
Guarantee
1. Guarantee:365 days after selled.
2. During guarantee,the items share free repairs or replacement.
3. Customer is responsible for the freight come-and-go,and the custom tax.
4. You may consider to send the defective item with a economical way,and we send back the repaired items with your new order together.
5. To save the cost,pls send the item back without packing.
6. Pls provide the defective appearance and related invoice number.

Material and Technology

Material and Technology

Polyester capacitor



Semiconductor power devices

All imported IC power devices, high-current model with the United States

Main power resistors



Adjusting potentiometer

U.S. BOURNS original

Chip capacitors

Xiamen Farah

Glue

PU environmental protection, at the same time does not change the electrical properties of high-temperature and high-temperature characteristics

More advantages

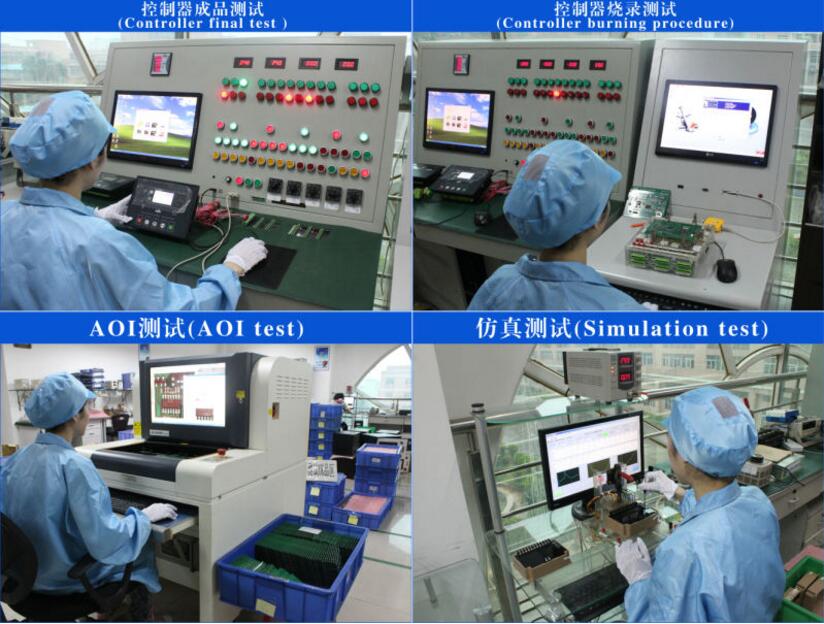

1.After the the strict fully functional and performance testing, and high-temperature aging, each batch of test reliability ratio of 3%. The parameters of each board are rigorously tested and adjusted, fully compatible with original products

2.High stability of the key components of the product, we use a low temperature coefficient components to ensure product

3.Original two transistor, and 2 ounces of large-current circuit board (the majority of the conventional circuit board is 1 ounce) to ensure high reliability in a high-power semiconductor element
