Knowledge points
To install the P765075 Hydraulic Filter, follow these steps:
1. Locate the filter housing or mounting location in your hydraulic system.
2. Ensure that the hydraulic system is depressurized and shut off.
3. Remove the old filter by turning it counterclockwise or releasing any fasteners holding it in place.
4. Clean the filter housing or mounting surface to remove any dirt or debris.
5. Apply a thin layer of clean hydraulic fluid to the gasket or sealing surface of the new filter.
6. Align the threads of the new filter with the filter housing and turn it clockwise to tighten it.
7. Hand-tighten the filter until it is snug, then use a filter wrench to give it an additional 3/4 turn.
8. Double-check that the filter is properly installed and tightened.
9. Turn on the hydraulic system and check for any leaks.
10. Dispose of the old filter properly.
P765075 Details
Part Number:P765075
Part Type:Hydraulic Filter
Brand:Donaldson Replacement
MOQ:60pcs
Place of origin:Jiangxi,China
Certification:ISO9001,CE,ISO14001,OHSAS18001
Price:Negotiable
Payment term:TT,LC
Payment:T/T 30% as deposit,and 70% before delivery
Packaging Details:Carton
Market:Middle East/ Africa/Asia/South America/Europe/North America
P765075 Attributes:
| Outer Diameter | 97 mm (3.82 inch) |
| Thread Size | 2-16 UN |
| Length | 181 mm (7.13 inch) |
| Gasket OD | 70.15 mm (2.76 inch) |
| Gasket ID | 63.1 mm (2.48 inch) |
P765075 Alternative Part Number:
Baldwin BT9400-MPG
Dana 4209440
Fleetguard HF35464
Hyster 1556992
Hifi SH 66201
JLG Industries 8008101
Kalmar 4258178279 9210280005 9210280007
Linde 0019982302
New Holland 76086226
Sakura HC-45030
Sany 60077980
SF Schupp SPH 12554
Terex/Terex Advance 10035430 Z6550537
Yale & Towne 580048036
Wix 5727

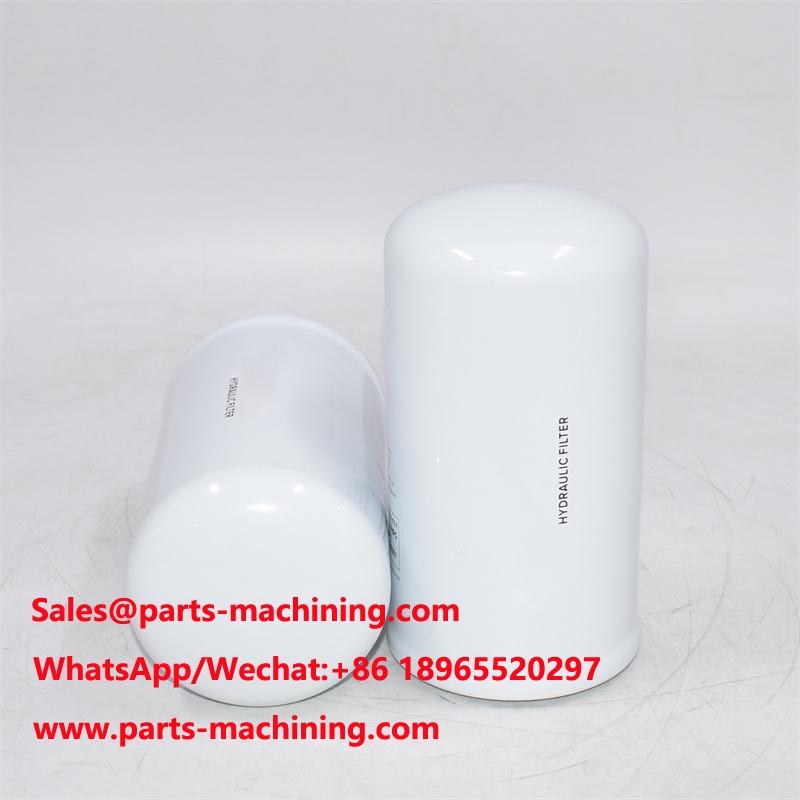

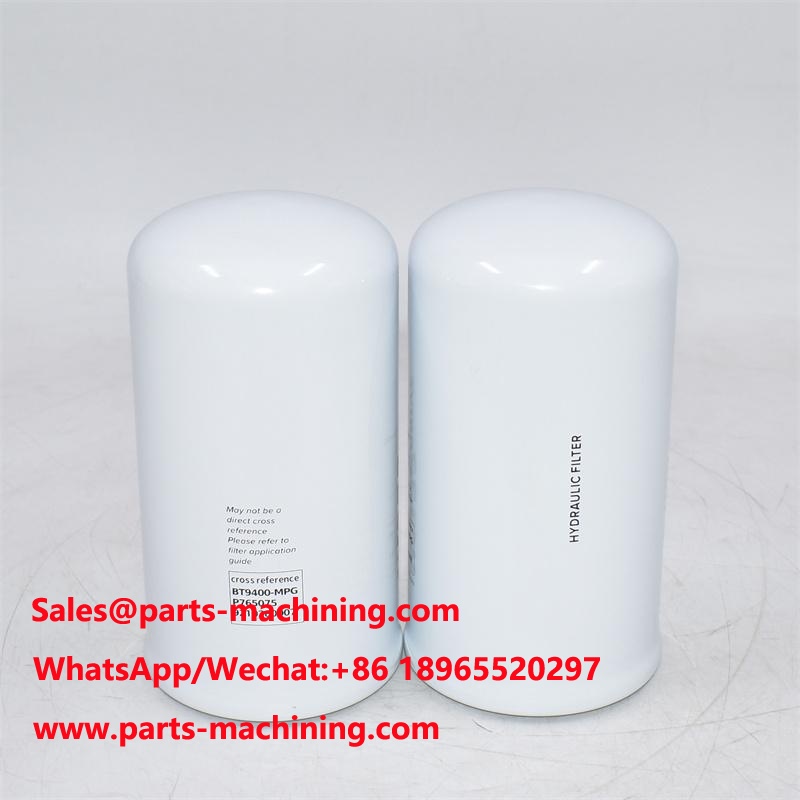

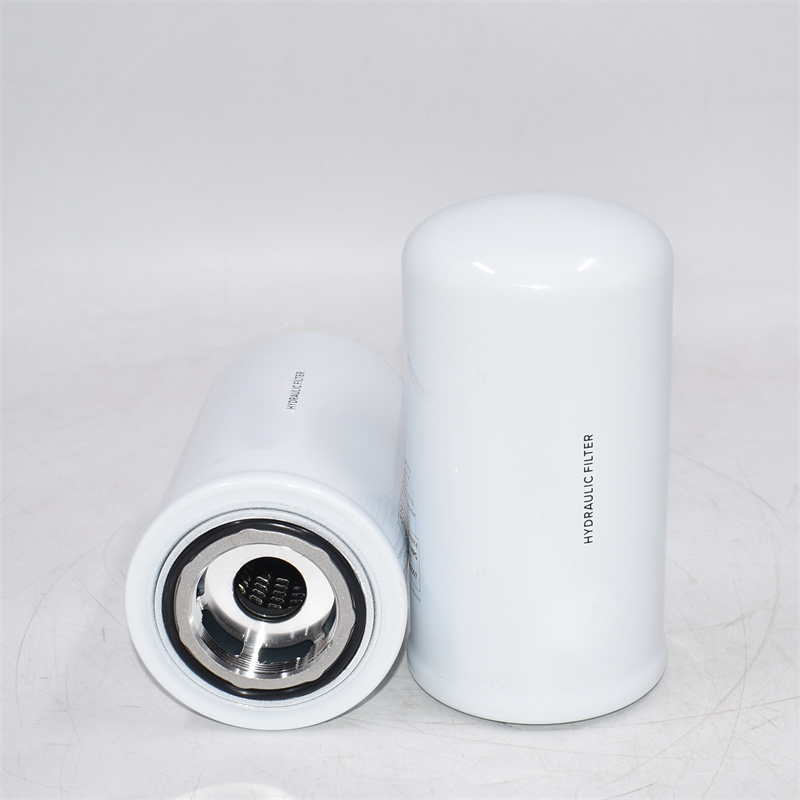

P765075 Picture show
