Fine Filter B27/27 Installation Steps
The installation process for the Fine Filter B27/27 involves the following steps:
1.Select an appropriate location: Choose a suitable location for installing the Fine Filter B27/27. Consider factors such as accessibility, space requirements, and proximity to the compressed air system.
2.Prepare the installation area: Clear the area of any obstructions and ensure a clean and level surface for mounting the filter. Remove any debris or contaminants that could interfere with the installation process.
3.Mount the filter: Attach the Fine Filter B27/27 securely to the designated location using appropriate mounting brackets or hardware. Ensure that the filter is aligned properly and securely fastened to prevent any movement or vibrations during operation.
4.Connect the inlet and outlet: Connect the compressed air source to the inlet port of the filter and the outlet port to the downstream equipment or distribution system. Use suitable fittings, connections, and sealing materials to ensure proper air-tight connections.
5.Check for leaks: Before starting the compressed air system, carefully inspect all connections and fittings for any signs of air leaks. Tighten any loose connections and address any leaks promptly to ensure optimal filtration efficiency.
6.Start the compressed air system: Once the filter installation is complete, start the compressed air system and monitor for any irregularities or issues. Verify that the filter is functioning correctly and providing the desired level of filtration based on the system requirements.
It is important to consult the Fine Filter B27/27 installation manual provided by the manufacturer for detailed instructions and any specific considerations related to your particular application.
Details

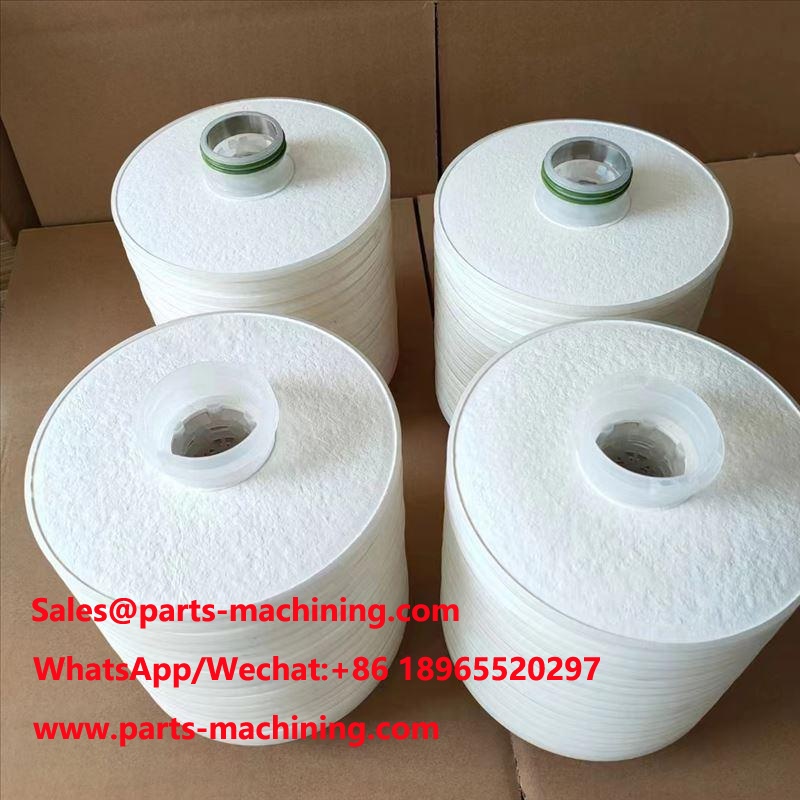

Part Number:B27/27
Part Type:Hydraulic Filter
Brand:CJC
MOQ:60pcs
Producing area:Jiangxi,China
Certification:ISO9001,CE,ISO14001,OHSAS18001
Price:Negotiable
Payment term:TT,LC
Payment:T/T 30% as deposit,and 70% before delivery
Packaging Details:Carton
B27/27 Specification:
Height: 269mm
OD: 269mm
ID: 59mm
B27/27 OEM Cross Reference:
CJC B 27/27 1X27/27 PA5601301
Hifi SH62107
