The Radiator Core Structure
The radiator core is the most important component in a radiator,. The radiator core consists of pipes, heat sinks, and upper and lower main heat sinks. Due to its sufficient heat dissipation area, it can ensure that the heat from the engine can be dissipated into the atmosphere. The radiator core is made of extremely thin metal and its alloys, and has good thermal conductivity, enabling the radiator core to achieve the highest heat dissipation effect with minimum mass and size. There are various types of radiator core structures, as shown below: tube fin type, tube belt type, unit type, tube core type, etc.

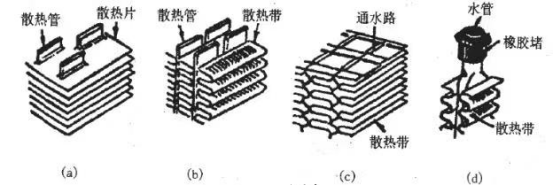

a.Tube slice b.Tube belt c.Cellular d.On-die
