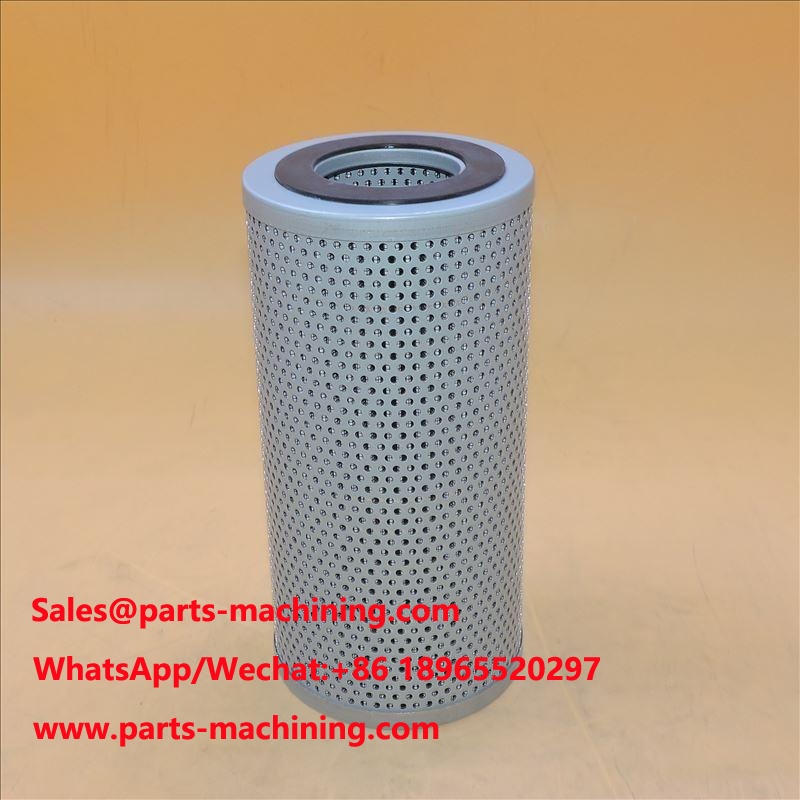

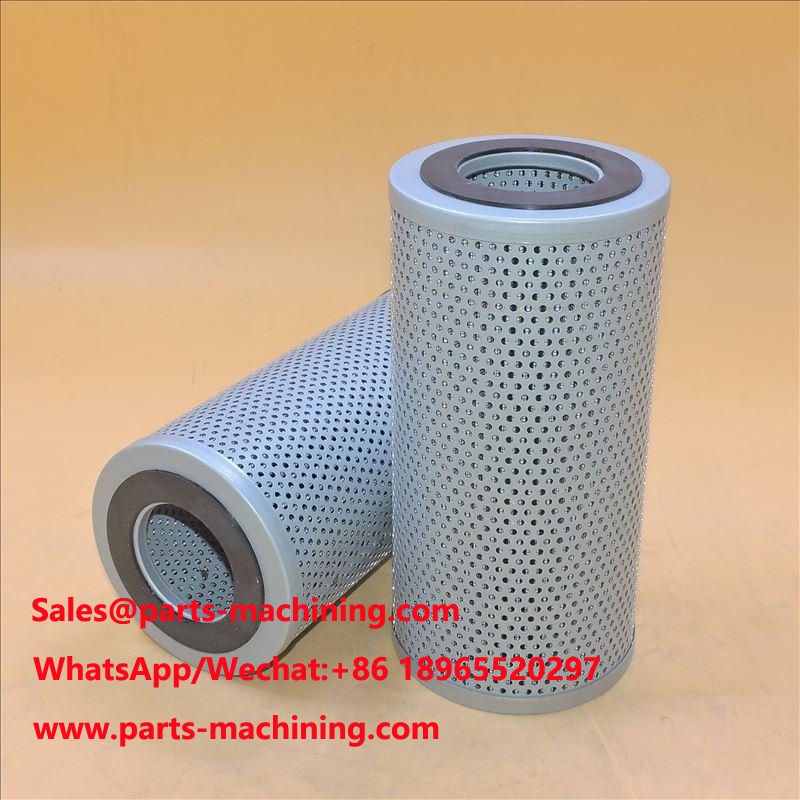

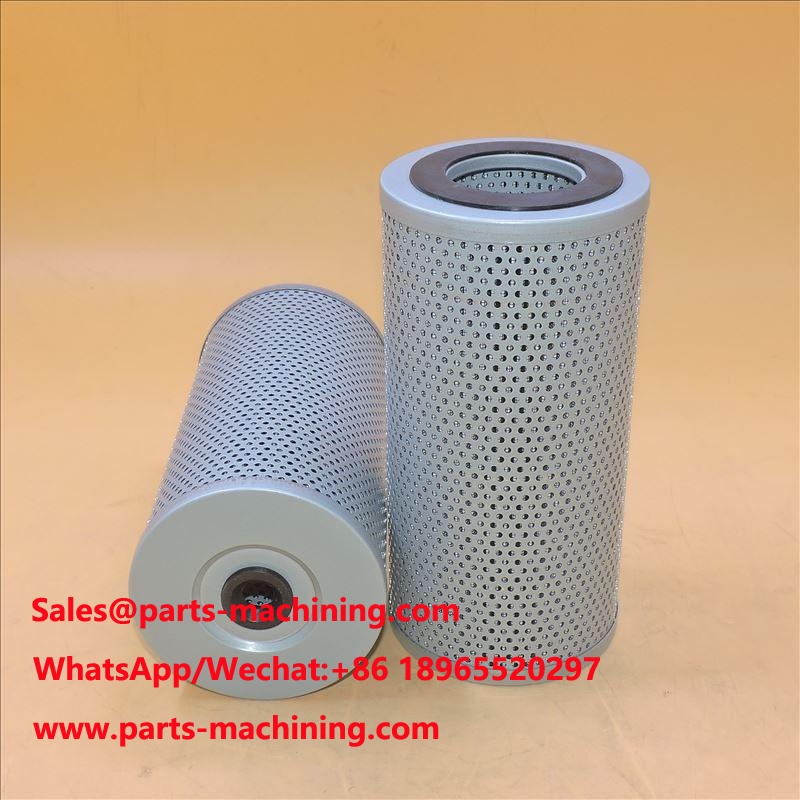

Hydraulic Filter HF6062 Equivalent to SH 56112,3I1334,P556001,PT275,W 10 020 For FWD,Racine, Wagner,Yale & Towne Equipment.
Hydraulic Filter HF6062 Equivalent to SH 56112,3I1334,P556001,PT275,W 10 020 For FWD,Racine, Wagner,Yale & Towne Equipment.
Cross Reference:
HIFI SH 56112,CATERPILLAR 3I1334,DONALDSON P556001,Baldwin PT275OEM Part Number:
HF6062Brand:
AYREST/Authorized BrandMinimun Order Quantity:
60pcsEX.W Price:
The price base on your quantityApplication:
CATERPILLAR 3406C,3408,3408B.KOMATSU 100C,175C,3964B,3965B,3984,3984B,515B,175E,TD15B,TD15C,TD20,TD20C,TD20E,TD25C,TD25EHF6062 Description
Caterpillar 3406C,3408,3408B.Komatsu 100C,175C,3964B,3965B,3984,3984B,515B,175E,TD15B,TD15C,TD20,TD20C,TD20E,TD25C,TD25E Hydraulic Filter HF6062,SH 56112,3I1334,P556001,PT275,W 10 020
HF6062 Specification:
| Outer Diameter | 4.53 inch (115 mm) |
| Inner Diameter | 0.54 inch (13.7 mm) |
| Length | 8.97 inch (227.77 mm) |
HF6062 OEM Equivalent Part Number:
Hifi SH 56112
Caterpillar 3I1334
Donaldson P556001
Baldwin PT275
Mann W 10 020
Wix 51403
Case 631144C1
Racine 493144
HF6062 Apply Equipment:
CATERPILLAR
3406C,3408,3408B
KOMATSU
100C,175C,3964B,3965B,3984,3984B,515B,175E,TD15B,TD15C,TD20,TD20C,TD20E,TD25C,TD25E
TWIN DISC
DIVERS
The maintenance method for hydraulic oil filter element is as follows:
1. Before replacing, drain the original hydraulic oil, check the return oil filter element, suction filter element, and pilot filter element to see if there are iron, copper, or other impurities attached. If there are any, there may be hydraulic component faults. After troubleshooting, clean the system.
2.When changing hydraulic oil, all hydraulic oil filter elements (AYREST filter return filter element, suction filter element, pilot filter element) must be replaced at the same time, otherwise it is equivalent to not changing.
3. Identify the hydraulic oil grade. Different grades and brands of hydraulic oil should not be mixed, which may react and deteriorate to produce flocculent substances. It is recommended to use the specified oil for this excavator.
4. Before refueling, the oil suction filter element must be installed first. The pipe mouth covered by the oil suction filter element directly leads to the main pump. If impurities are introduced, it will accelerate the wear of the main pump, and if heavy, it will start the pump.
5. Fill the oil to the standard position. There is usually an oil level gauge on the hydraulic oil tank, and check the level gauge. AYREST filter reminds to pay attention to the parking method. Generally, all oil cylinders are fully retracted, that is, the forearm and bucket are fully extended and landed.
6. After refueling, be sure to exhaust the air from the main pump. Otherwise, there may be temporary inactivity of the entire vehicle, abnormal noise (air explosion) from the main pump, or air pockets that may damage the main pump. The method of exhausting air is to directly loosen the pipe joint at the top of the main pump and fill it up.
