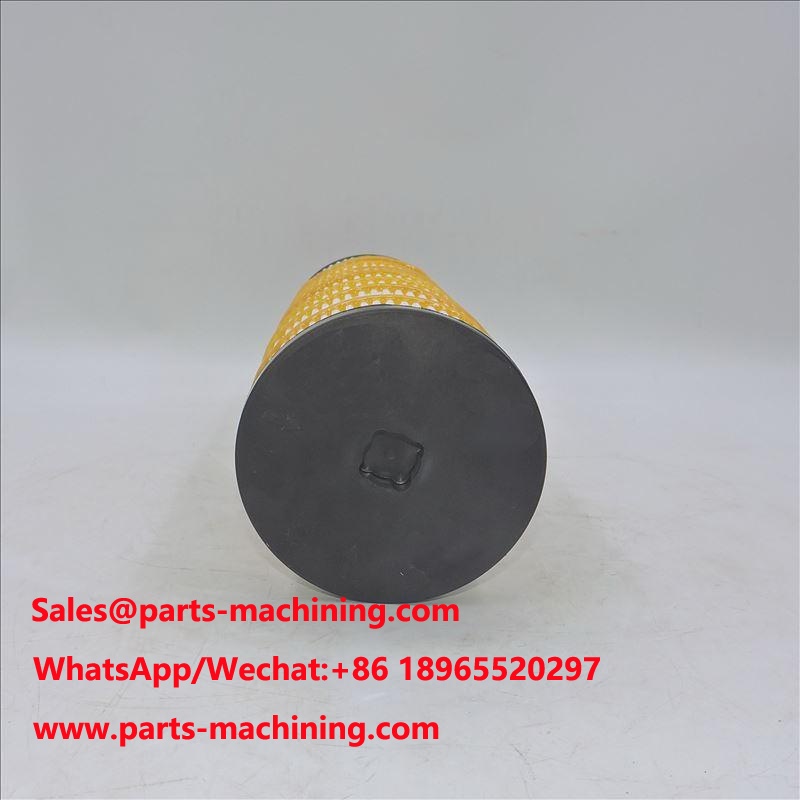

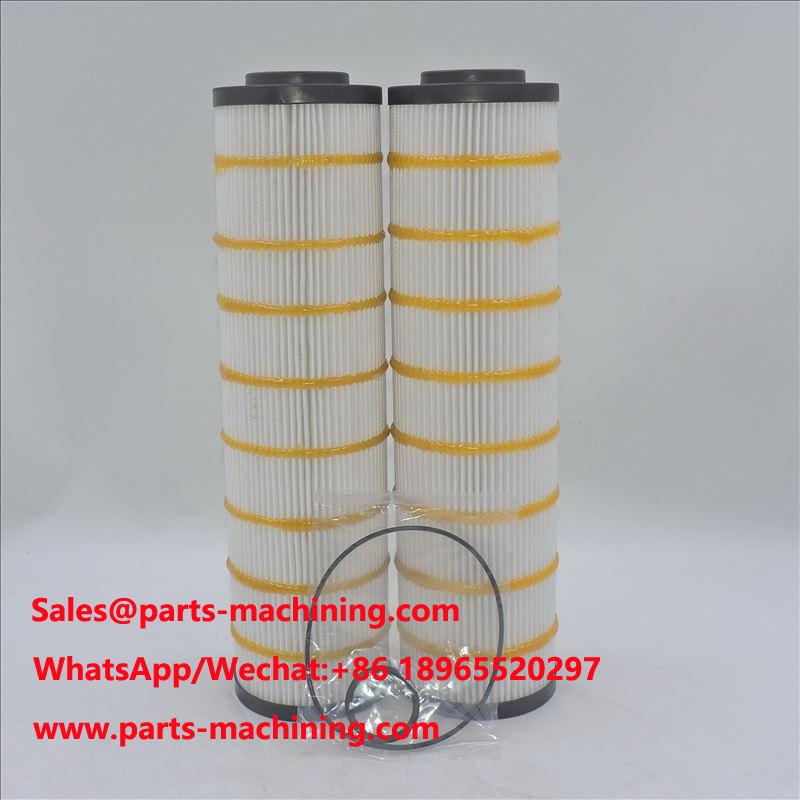

Hydraulic Filter 344-0004 Cross Reference 3440004,SH 66383,HF29123 For Caterpillar Track-Type Tractor.
Hydraulic Filter 344-0004 Cross Reference 3440004,SH 66383,HF29123 For Caterpillar Track-Type Tractor.
Cross Reference:
Hifi SH 66383 Fleetguard HF29123 Caterpillar 3440004OEM Part Number:
344-0004Brand:
AYREST/Authorized BrandMinimun Order Quantity:
60pcsEX.W Price:
The price base on your quantityApplication:
Caterpillar D10T2 D11 D11T 990K 992K 993K 994K 992 844K 854K344-0004 Description
Hydraulic Filter 344-0004 Equivalent to 3440004,SH 66383,HF29123 Applicate Caterpillar D10T2 D11 D11T 990K 992K 993K 994K 992 844K 854K.
344-0004 Attributes:
| Overall Height | 463.29 mm (18.24 inch) |
| Largest OD | 120 mm (4.724 inch) |
| Largest End ID | 59.25 mm (2.333 inch) |
344-0004 OEM Equivalent Part Number:
Hifi SH 66383
Fleetguard HF29123
Caterpillar 3440004
SF HY 80034
344-0004 Application:
Caterpillar
Track-Type Tractor
D10T2 D11 D11T
Wheel-Type Loader
990K 992K 993K 994K 992
Wheel Dozer
844K 854K
What will be the impact of hydraulic oil filtration blockage on excavators?
1. If it is a pump suction filter, it will cause insufficient oil suction, loud noise, heat generation, and then burn out.
2. If it is a high-pressure circuit oil filter, there is usually an alarm and bypass valve, otherwise blockage will cause downstream components to move slowly or the oil cylinder and other components to not move.
3. If it is a return oil filter, it will cause blockage of the return oil and increase the back pressure. The oil cylinder moves slowly. However, for general oil filters, there is a bypass valve, which means that if the filter element is blocked, the hydraulic oil directly returns to the downstream circuit without passing through the filter element. This advantage does not affect the normal operation of the system, but the harm is also very clear. Since the filter element is blocked, it indicates that the oil is very dirty;
4. If the hydraulic oil is bypassed back to the downstream system without passing through the filter element, it is likely to cause the downstream valve core to become stuck and contaminate the downstream hydraulic components.
So if the hydraulic oil filter of the excavator is severely blocked, replace it in a timely manner!
