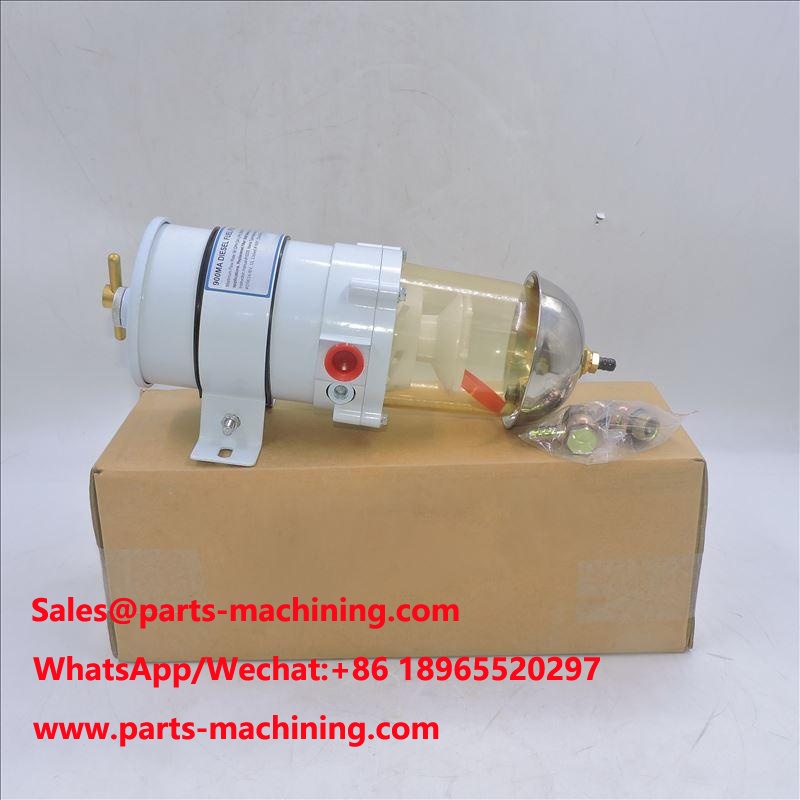

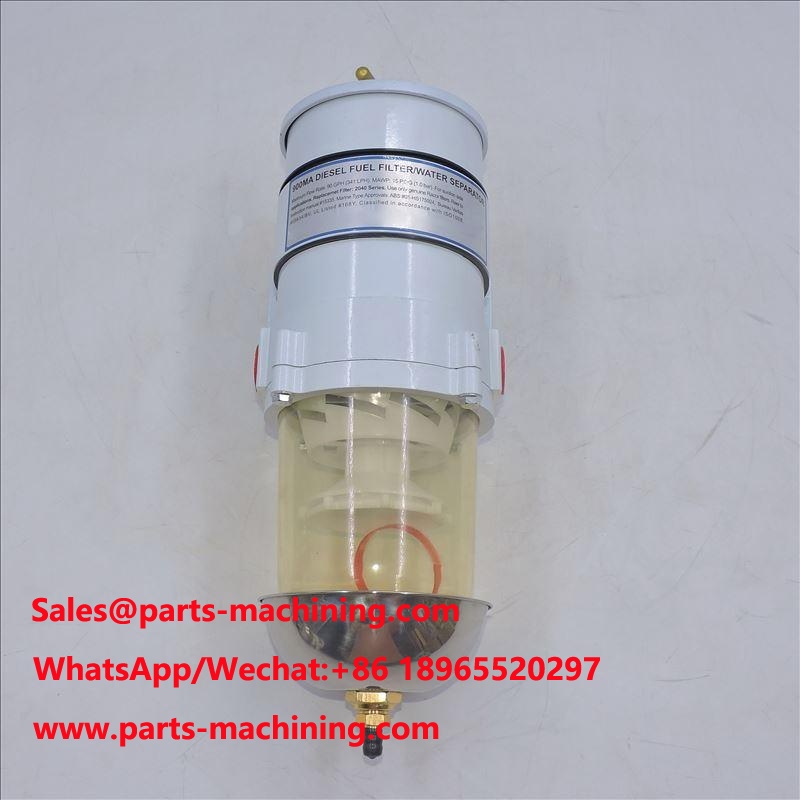

Fuel Water Separator Assembly 900MA 900MA10 900MA30 900MA2

900MA Dimensions:

Width:152mm (6")

Size:(SAE J1926) 7/8"-14 UNF Female Ports

Series:900 Series

Height:432mm (17")

Pressure:Drop Clean: 0.25PSI (1.7 kPa)

Depth:178mm (7")

900MA OEM Alternative Part Number:

Racor

900MA2 (2 Microns)

900MA10 (10 Microns)

900MA30 (30 Microns)

900MA Description:

Racor Turbine Series fuel filter/water separator protects the precision components of your engine from dirt,rust,algae,asphaltines,varnishes and especially water,which is prevalent in low distillate fuels.Contaminants are removed from fuel using the following legendary three stage process:

Stage 1—Separation

Using the fuel flow, the stationary

turbine separates large solids and

free water through enchanced

centrifugal force.

Stage 2—Coalescing

Smaller water droplets and solids

coalesce on the conical baffle and

fall to the collection bowl.

Stage 3—Filtration

Engines will benefit from near

100% water separation and fuel

filtration with Racor’s proprietary

Aquabloc® water repelling media.

The replaceable filters are

available in 2, 10, and 30 micron

ratings.

Benefits of Racor 900MA Fuel Filter

Removes water that enters the system through condensation in the fuel tank. Any water present in the fuel stream will support bacterial growth, which can cause clogged filters and result in the formation of corrosive acids. Susceptible components then rust and corrode, leading to erosion and wear of critical fuel system components.

• Removes hard particles present in air that are introduced during fueling, such as sand and silica.

• Removes soft contaminant particles from overheated and degraded diesel fuel, which coat filters with black asphaltene-like substance, leading to power loss and engine shutdown.

• Prevents costly injector damage and increases operational life of downstream filters.

• Saves time and money by eliminating unplanned maintenance and unscheduled downtime from system component failure.

• With Racor 75 and 791000 Turbines, a simple turn of a valve puts a clean filter back on-line. Servicing of the clogged filter can then be performed with the engine running.

• Available in a wide range of configurations to meet the unique requirements of customers’ engines, including marine (UL-approved) versions.

Features:

• Aquabloc® engineered media elements with 98% efficiency at 4, 10 or 30 micron

• Various flow rates available: 60 gph (227 lpm) with a single 500FG Series, up to 540 gph (2044) with the 77 and 791000 series triple-manifold units

• Corrosion-resistant construction

• Self-venting drain valve or plug (on metal bowls)

• Clear contaminant collection bowl
