Hydraulic Filter 6832420 Equivalent to SH75134 PT23220-MPG ST1435 For Claas Tractors.
Hydraulic Filter 6832420 Equivalent to SH75134 PT23220-MPG ST1435 For Claas Tractors.
Cross Reference:
Hifi SH75134 Baldwin PT23220-MPG Donaldson P560141 Fleetguard ST1435OEM Part Number:
6832420Brand:
AYREST/Authorized BrandMinimun Order Quantity:
60pcsEX.W Price:
The price base on your quantityApplication:
Claas Cougar 1400,Xerion 4500,Xerion 5000,Xerion 5000 TRAC VCIntroduction to the Principle of Hydraulic Filter 6832420:
Hydraulic filter 6832420 works according to the principle of physical filtration. As hydraulic fluid flows through the filter, it passes through a porous medium, such as a mesh or fiber element. This medium traps contaminants and debris, allowing only clean fluid to pass through. The filter medium's efficiency is measured in microns, which is the size of the particles it can remove from the fluid. Hydraulic filters are available in different micron ratings depending on the application requirements. For example, a hydraulic system used in a dirty working environment will require a filter with a finer micron rating than one used in a clean environment. In addition to the filter medium, hydraulic filters also have a bypass valve that allows fluid to bypass the filter when it becomes clogged. This prevents a drop in system pressure and ensures that the hydraulic system continues to operate, even when the filter needs replacement.
6832420 Specification:
| Outer Diameter | 68.5 mm (2.70 inch) |
| Inner Diameter | 34.5 mm (1.36 inch) |
| Overall Length | 354.7 mm (13.96 inch) |
6832420 OEM Cross Reference:
Hifi SH75134
Baldwin PT23220-MPG
Donaldson P560141
Fleetguard ST1435
Claas 0006832420
Hydac 1250492 1262386 280D010BN3HC 280D010BN4HC 280D010BNHC 308672
Internormen 20280D10VG30HREP 306219
Mann HD751
6832420 Application:
CLAAS
Cougar 1400,Xerion 4500,Xerion 5000,Xerion 5000 TRAC VC

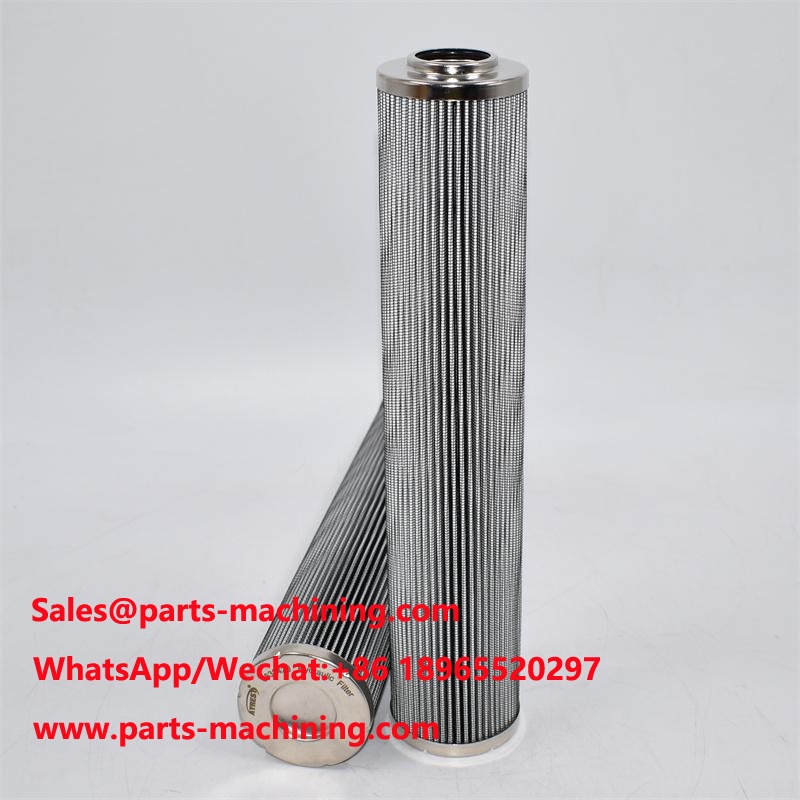

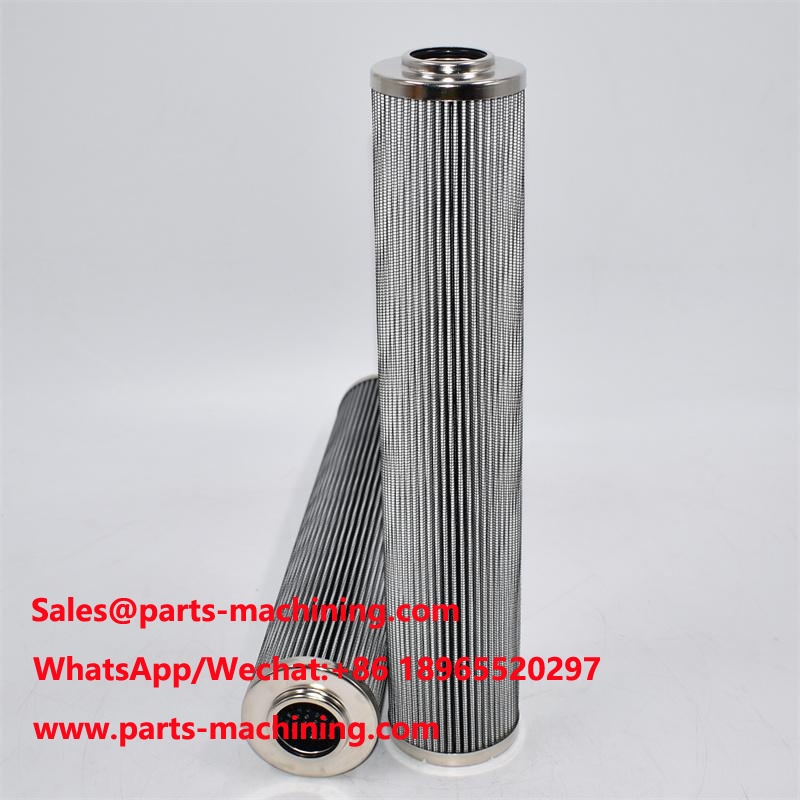

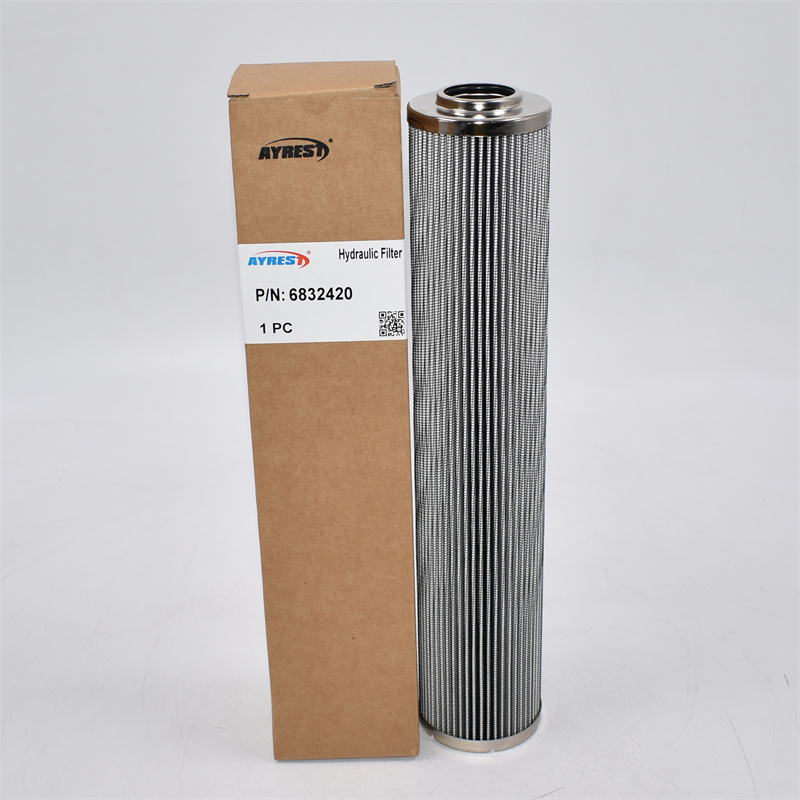

6832420 Picture show
