938909Q Specification:
Housing Series: GMF3 Series

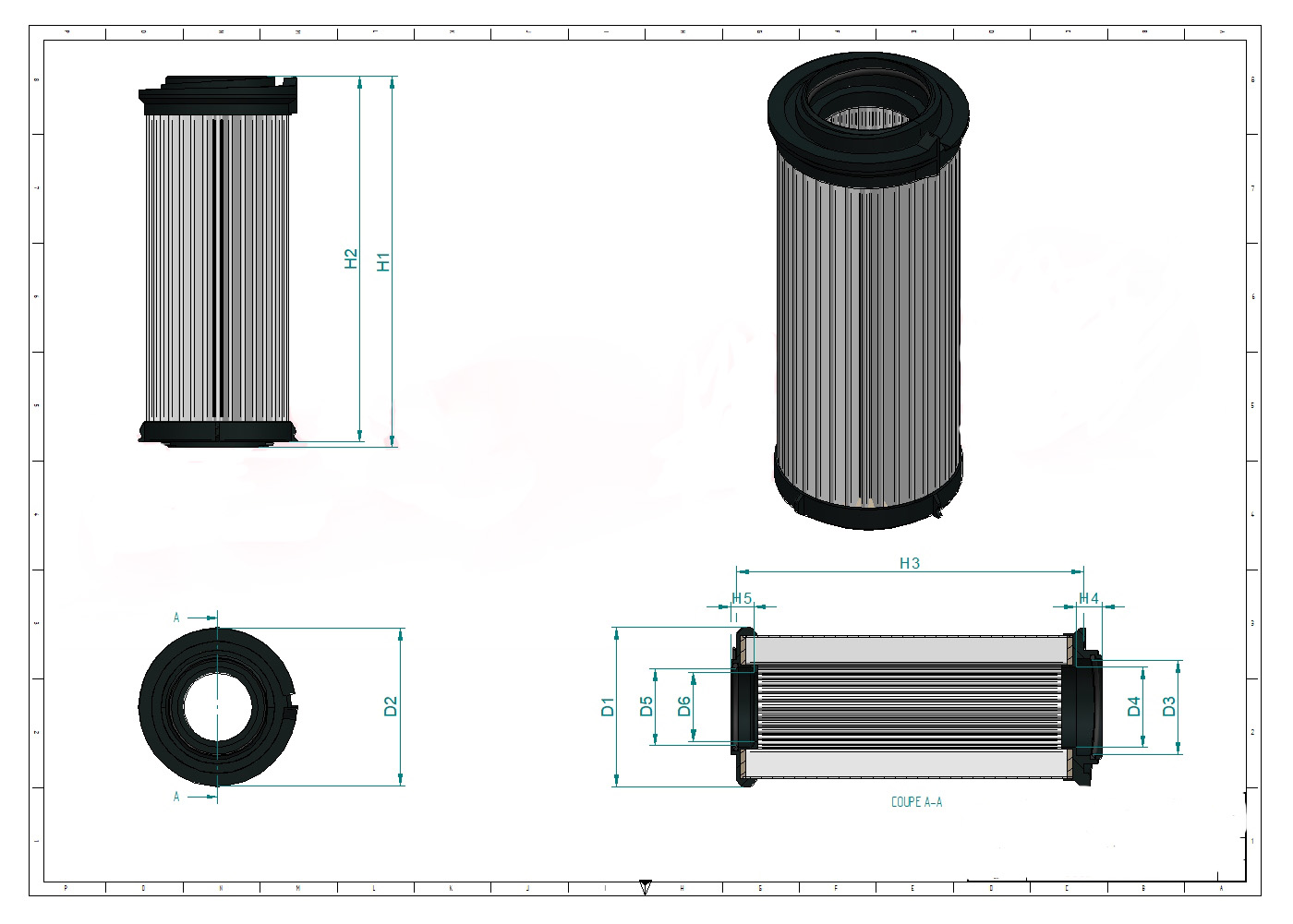

H1 (mm):201.0 H2 (mm):198.0 H3 (mm):189.0 D1 (mm):87.0 D2 (mm):86.5 D3 (mm):52.0
938909Q OEM Equivalent Part Number:
HIFI SH 51449 V
Benefits:
• Prevents contamination and ingress of dirt, sand, dust, metal, etc. into hydraulic system.
• Lengthens time in between required maintenance intervals, reduces operating costs, and extends overall equipment/machine operational life.
• Patented eco-friendly design allows for integration of the bypass valve and element core as reusable parts in the filter bowl. This results in reduced waste (by up to 50%) and lower disposal costs.
• Filter element remains inside the filter bowl during change-out, saving over 500 mm of space envelope when compared with traditional medium pressure filters.
• Special locking system ensures the element remains in bowl during service, offering a compact filter solution with very low bowl/element clearance.
938909Q Applications:
• Deck and mobile cranes
• Firefighting equipment
• Forwarders
• Hydraulic presses
• Marine steering units
• Power packs
• Waste management, dump and fork lift trucks
• Excavators
• Harvesters
• Waste balers
• Reach stackers
• Wheeled loaders
• Drilling equipment
• Industrial power units
• Wind turbines
